PrimePCR™ Probe Assay: PHKG2, Human

RT

Real-time PCR probe assay designed for gene expression analysis. Probe assays consist of unlabeled PCR primers and a dual labeled fluorescent probe.

List Price:    $255.00
Your Price:   Log In
Quantity:


PrimePCR™ PreAmp for Probe Assay: PHKG2, Human
Reaction:     400 reactions
Gene-specific PCR primers for the unbiased preamplification of small quantities of cDNA for subsequent use in downstream gene expression analysis.

PrimePCR™ Template for Probe Assay: PHKG2, Human
Reaction:     200 x 20 µl reactions
Gene-specific synthetic DNA template designed to give a positive real-time PCR result when used with the corresponding probe assay.


Assay Information

Technology:   qPCR
Assay Type:   Probe
Application:   Gene Expression
Unique Assay ID:   qHsaCEP0053007
Assay Design:   exonic
Chromosome Location:   16:30764737-30764848question
Amplicon Length:   82
Splice Variants Targeted:   ENST00000563588 ENST00000565924 ENST00000424889 ENST00000328273 ENST00000565897 ENST00000561712

Gene Information

Phosphorylase kinase is a polymer of 16 subunits four each of alpha beta gamma and delta. The alpha subunit includes the skeletal muscle and hepatic isoforms encoded by two different genes. The beta subunit is the same in both the muscle and hepatic isoforms and encoded by one gene. The gamma subunit also includes the skeletal muscle and hepatic isoforms and the hepatic isoform is encoded by this gene. The delta subunit is a calmodulin and can be encoded by three different genes. The gamma subunits contain the active site of the enzyme whereas the alpha and beta subunits have regulatory functions controlled by phosphorylation. The delta subunit mediates the dependence of the enzyme on calcium concentration. Mutations in this gene cause glycogen storage disease type 9C also known as autosomal liver glycogenosis. Alternatively spliced transcript variants encoding different isoforms have been identified in this gene.[provided by RefSeq Feb 2010]

Gene Symbol:   PHKG2
Gene Name:   phosphorylase kinase, gamma 2 (testis)
Aliases:   GSD9C
RefSeq:   NC_000016.9 NG_016616.1 NT_010393.16
Ensembl:   ENSG00000156873
Entrez:   5261
Chromosome Mapping:   16p11.2

The below validation information is for the Primer Pair only   Download Validation Data (.pdf)

Products used to generate validation data:

Real-Time PCR Instrument CFX384 Real-Time PCR Detection System
Reverse Transcription Reagent iScript™ Advanced cDNA Synthesis Kit for RT-qPCR
Real-Time PCR Supermix SsoAdvanced™ Universal SYBR® Green Supermix
Experimental Sample qPCR Human Reference Total RNA

Summary Data:

R2 0.999000
y-intercept 35.930000
Efficiency 100

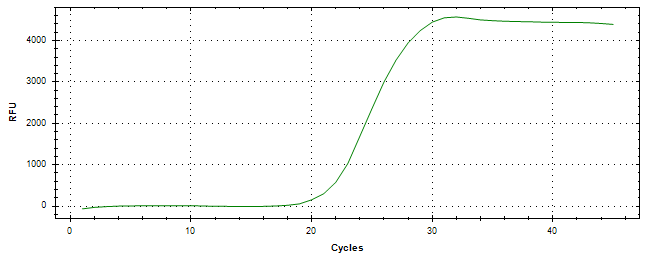

Amplification Plot
Amplification of cDNA generated from universal RNA.

Amplification of cDNA generated from universal RNA.

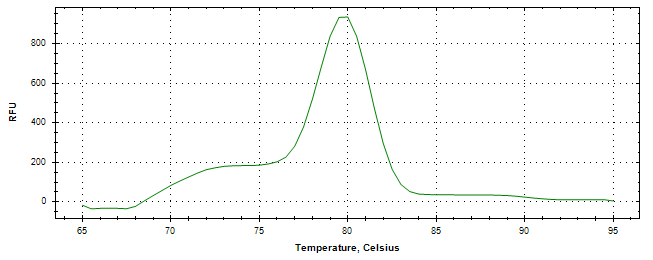

Melt Peak
Melt curve analysis of above amplification.

Melt curve analysis of above amplification.

Standard Curve
Standard curve generated using 20 million copies of template diluted 10 fold to 20 copies.

Standard curve generated using 20 million copies of template diluted 10 fold to 20 copies.
